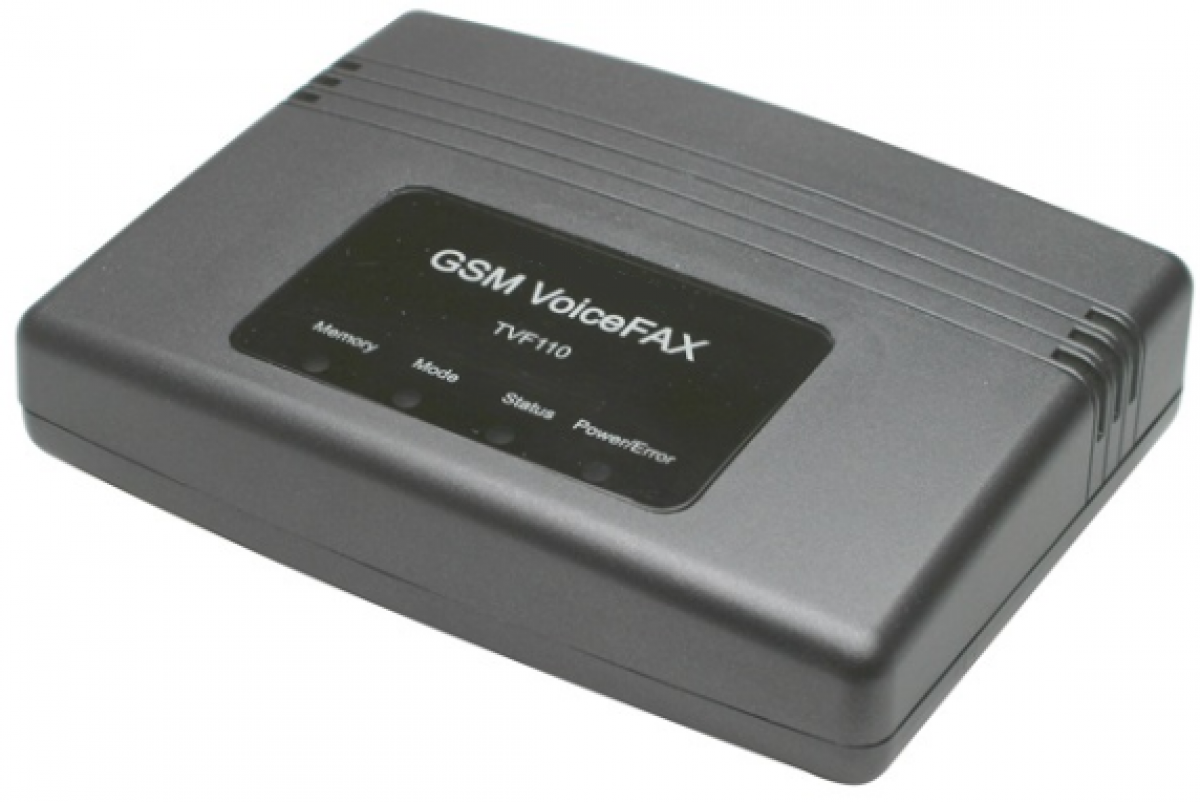

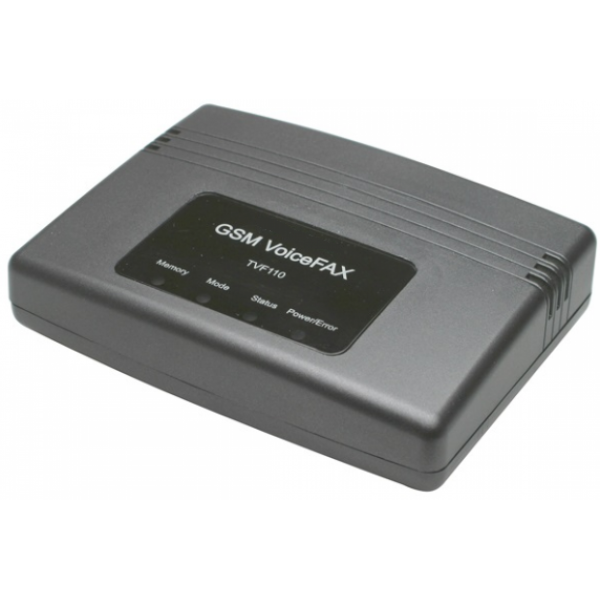

IQT TVF110 GSM VoiceFAX

Voice Fax Gateway is a multifunctional device designed for facsimile and voice calls.
Device works as fixed line equivalent so it eliminates fixed line and saves costs.

Features:

• The RF transceiver modulates the baseband signal to the desired frequency in the 900MHz or 1800MHz.
• FAX G3, Class 2.0
• Two RJ14 sockets
• SMA antenna connector
• Configuration over DTMF

Configurable options

• Volume level controll
• Time interval between dialing and connecting
• Prefix adding
• Voice Fax prefix switching
• Caller ID display control
• Calling line identification restriction
• Turning on/off the call duration signal
• Changing Service menu password
• Sepparate or duplicate RJ14 sockets
• Baby Call
• PIN code entering control
• Prefix blocking
• Number blocking
• Number of rings to answer
• Number of facsimile retries
• Delay between retries
• Allways answer as fax
• Delete facsimile from memory after retries
• Show incomming number of pages

Product Kit:

• Voice Fax Gateway unit
• AC/DC power supply
• Antenna
• User guide
• Cardboard box

Technical specifications

• Dimentions: (H x W x L) 37 x 140 x 106 mm
• Power adapter input: 100-240V
• Power adapter output: 12V
