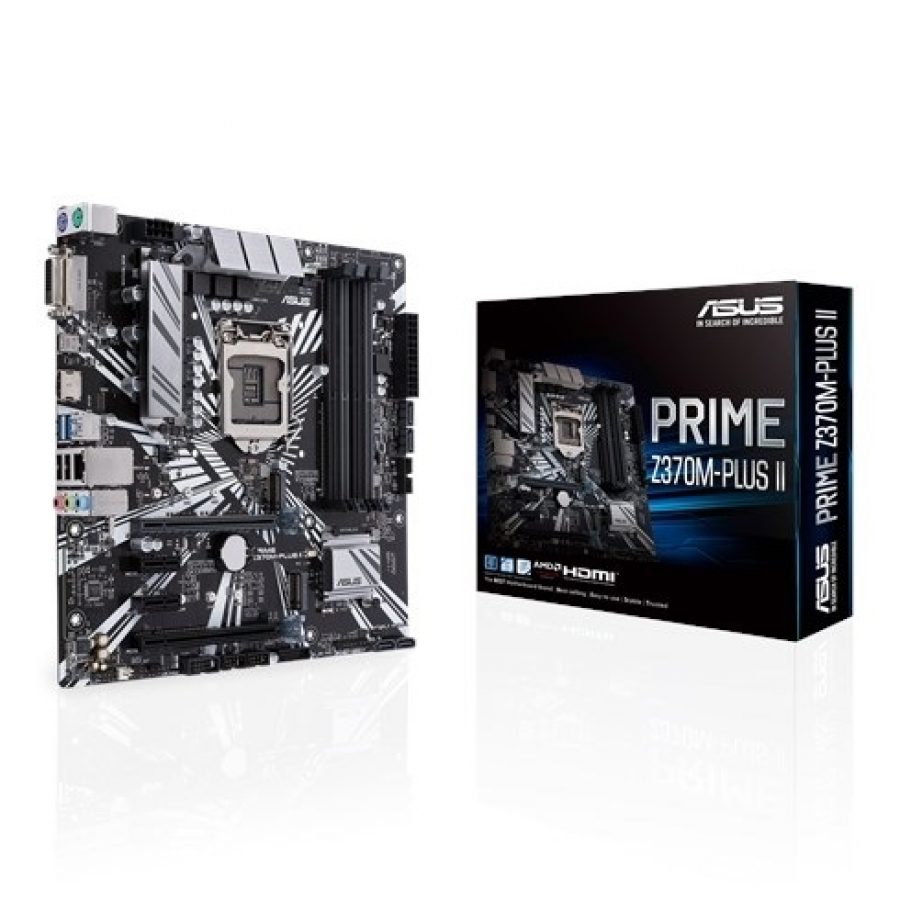

Asus PRIME Z370M-PLUS II, mATX-emolevy

Prosessorituki:
8. sukupolven Intel Core / Pentium / Celeron -prosessorit
LGA1151

Piirisarja:
Intel Z370

Muistituki:

4 x DIMM, maks. 64GB

Dual Channel -muistiarkkitehtuuri

Tukee DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz



Audio:
Realtek ALC887


Verkkokortti:

Intel I219V, 1 x Gigabit LAN

Laajennuspaikat:

1 x PCIe 3.0/2.0 x16 (x16, x8/x4 + x4)

1 x PCIe 3.0/2.0 x16 (maks. @ x4)

2 x PCI3 3.0/2.0 x1

Tukee AMD CrossFireX



Liitännät (sisäiset):
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Mono Out header

Liitännät (ulkoiset):
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 Type-A
1 x USB 3.1 Gen 1 Type-C
2 x USB 2.0
3 x Audio jack(s)

Emolevyn tyyppi:
mATX (24,4 x 24,4 cm)
